Extraction
Install a Weiss extractor fan for a drier, warmer, healthier bathroom
Bathroom extractor fans exhaust the indoor air to the outside via a duct. They are important for several reasons. They remove unpleasant odours and pollutants from your bathroom. But their most important function is the removal of warm, moist air created by baths and showers. Warm, moist air encourages the growth of unhealthy mould and mildew, and can damage fixtures and surfaces. For a safer, healthier bathroom, install a Weiss extraction system in your home.
Powerful and effective inline exhaust fan with ducting. Rapidly clears away mist and extracts moisture to the outside of your home.
FEATURES & BENEFITS
Powerful fan and effective fan motor
6 metres of 150mm ducting included
Low voltage (12V) lighting transformer
Product designed to run with up to 10 metres of ducting fitted
Includes Surface Socket
3-year warranty
PRODUCT SPECIFICATIONS
Quiet yet powerful operation
Motor: 230-240 VAC 50Hz 55W (mixed flow inline fan)
Motor insulation class: B1
Motor protection: thermal protection
12v lighting transformer included
6 metres of 150mm ducting
Decibel rating: 45.0 dB
3 speed capable unit*
• High Speed: 530m3/hr / 147.2 l/sec
• Medium Speed: 404.86m3/hr / 112.46 l/sec
• Low Speed: 353.33m3/hr / 98.15 l/sec
*based on internal wiring fixed selection
Powerful and effective inline exhaust fan with ducting. Rapidly clears away mist and extracts moisture to the outside of your home.
FEATURES & BENEFITS
Stylish Design
Easy to install
Powerful fan and effective fan motor
6 metres of 150mm ducting included
Product designed to run with up to 10 metres of ducting fitted
Includes Surface Socket
3-year warranty
PRODUCT SPECIFICATIONS
Quiet yet powerful operation
Motor: 230-240 VAC 50Hz 55W (mixed flow inline fan)
Motor insulation class: B1
Motor protection: thermal protection
6 metres of 150mm ducting
Decibel rating: 45.0 dB
3 speed capable unit*
• High Speed: 530m3/hr / 147.2 l/sec
• Medium Speed: 404.86m3/hr / 112.46 l/sec
• Low Speed: 353.33m3/hr / 98.15 l/sec
*based on internal wiring fixed selection
Powerful and effective inline exhaust fan with ducting. Rapidly clears away mist and extracts moisture to the outside of your home.
FEATURES & BENEFITS
Stylish Design
Easy to install
Powerful fan and effective fan motor
6 metres of 150mm ducting included
Product designed to run with up to 10 metres of ducting fitted
Includes Surface Socket
3-year warranty
PRODUCT SPECIFICATIONS
Quiet yet powerful operation
Motor: 230-240 VAC 50Hz 55W (mixed flow inline fan)
Motor insulation class: B1
Motor protection: thermal protection
6 metres of 150mm ducting
Decibel rating: 45.0 dB
3 speed capable unit*
• High Speed: 530m3/hr / 147.2 l/sec
• Medium Speed: 404.86m3/hr / 112.46 l/sec
• Low Speed: 353.33m3/hr / 98.15 l/sec
*based on internal wiring fixed selection
High performance surface mounted ceiling exhaust fan. Rapidly clears away mist and extracts moisture to the outside of your home. Complies with new rental regulations. Suitable for buildings with a small roof cavity.
FEATURES & BENEFITS
Designed to wire to existing light switch
High performance Electronically Controlled fan
Suitable for a bathroom up to 4m x 5m
Suits installation outside Zone 1
3-year warranty
PRODUCT SPECIFICATIONS
Powerful operation
Motor: 230-240 VAC 50Hz 16W
Motor insulation class: B1
Motor protection: thermal protection
Free air fan performance: 574m3/hr / 159.4l/sec
Decibel rating: 55.1 dB
Speed adjustable version available – FV169SA-EC
Powerful and effective inline exhaust fan with ducting. Rapidly clears away mist. The safe and low voltage LED globe illuminates the shower area.
FEATURES & BENEFITS
Stylish Design
Easy to install
Powerful and effective fan motor
6 metres of 150mm ducting included
Low voltage (12v) lighting transformer
Product designed to run with up to 10 metres of ducting fitted
3-year warranty
PRODUCT SPECIFICATIONS
Quiet yet powerful operation
Motor: 230-240 VAC 50Hz 0.4 Amp (twin blade inline fan)
Motor insulation class: B1
Motor protection: thermally protected
Free Air Fan Performance: 405m3/hr 112.5l/sec
12v lighting transformer included
6 metres of 150mm ducting
Decibel rating: 45.0 dB
Powerful and effective inline exhaust fan with ducting. Rapidly clears away mist and extracts moisture to the outside of your home.
FEATURES & BENEFITS
Stylish Design
Easy to install
Powerful fan and effective fan motor
6 metres of 150mm ducting included
Product designed to run with up to 10 metres of ducting fitted
3-year warranty
PRODUCT SPECIFICATIONS
Quiet yet powerful operation
Motor: 230-240 VAC 50Hz 0.4 Amp (twin blade inline fan)
Motor insulation class: B1
Motor protection: thermal protection
Free Air Fan Performance: 405m3/hr 112.5l/sec
6 metres of 150mm ducting
Decibel rating: 45.0 dB
Powerful and effective inline exhaust fan with ducting. Rapidly clears away mist and extracts moisture to the outside of your home.
FEATURES & BENEFITS
Stylish Design
Easy to install
Powerful fan and effective fan motor
3 metres of 150mm ducting included
Product designed to run with up to 10 metres of ducting fitted
3-year warranty
PRODUCT SPECIFICATIONS
Quiet yet powerful operation
Motor: 230-240 VAC 50Hz 0.4 Amp (twin blade inline fan)
Motor insulation class: B1
Motor protection: thermal protection
Free Air Fan Performance: 405m3/hr 112.5l/sec
3 metres of 150mm ducting
Decibel rating: 45.0 dB
Powerful and effective inline exhaust fan with ducting. Rapidly clears away mist and extracts moisture to the outside of your home.
FEATURES & BENEFITS
Stylish Design
Easy to install
Powerful fan and effective fan motor
3 metres of 150mm ducting included
Product designed to run with up to 10 metres of ducting fitted
3-year warranty
PRODUCT SPECIFICATIONS
Quiet yet powerful operation
Motor: 230-240 VAC 50Hz 0.4 Amp (twin blade inline fan)
Motor insulation class: B1
Motor protection: thermal protection
Free Air Fan Performance: 405m3/hr 112.5l/sec
3 metres of 150mm ducting
Decibel rating: 45.0 dB
Powerful and effective inline exhaust fan with ducting. Rapidly clears away mist and extracts moisture to the outside of your home.
FEATURES & BENEFITS
Stylish Design
Easy to install
Powerful fan and effective fan motor
6 metres of 150mm ducting included
Product designed to run with up to 10 metres of ducting fitted
3-year warranty
PRODUCT SPECIFICATIONS
Quiet yet powerful operation
Motor: 230-240 VAC 50Hz 0.4 Amp (twin blade inline fan)
Motor insulation class: B1
Motor protection: thermal protection
Free Air Fan Performance: 405m3/hr 112.5l/sec
6 metres of 150mm ducting
Decibel rating: 45.0 dB
Powerful and effective inline exhaust fan with ducting. Rapidly clears away mist and extracts moisture to the outside of your home.
Features & Benefits
Stylish Design
Easy to install
Powerful fan and effective fan motor
3 metres of 150mm ducting included
Product designed to run with up to 10 metres of ducting fitted
3-year warranty
Product Specifications
Quiet yet powerful operation
Motor: 230-240 VAC 50Hz 0.4 Amp (twin blade inline fan)
Motor insulation class: B1
Motor protection: thermal protection
Free air fan performance: 405m3/hr / 112.5l/sec
3 metres of 150mm ducting
Decibel rating: 45.0 dB
Timer model available - FV102T
Powerful and effective inline exhaust fan with ducting. Rapidly clears away mist and extracts moisture to the outside of your home.
FEATURES & BENEFITS
Stylish Design
Easy to install
Powerful fan and effective fan motor
3 metres of 150mm ducting included
Product designed to run with up to 10 metres of ducting fitted
3-year warranty
PRODUCT SPECIFICATIONS
Quiet yet powerful operation
Motor: 230-240 VAC 50Hz 0.4 Amp (twin blade inline fan)
Motor insulation class: B1
Motor protection: thermal protection
Free Air Fan Performance: 405m3/hr 112.5l/sec
3 metres of 150mm ducting
Decibel rating: 45.0 dB
Powerful exhaust fan extracts mist that can cause mould and dampness to the outside of your home.
Product Details
Stylish Design
Easy to install
Powerful fan motor due to blade pitch design
3 metres of 150mm ducting and outlet vent included
3-year warranty
Product Specifications
Motor: 230-240 VAC 50Hz 0.4 Amp
Motor insulation class: B1
Motor protection: thermal protection
Free air fan performance: 326m3/hr / 90.61/sec
Product designed to run with up to three metres of ducting fitted
Decibel rating: 47.0 dB
High performance through wall exhaust fan. Rapidly clears away mist and extracts moisture to the outside of your home. Complies with new rental regulations.
FEATURES & BENEFITS
Designed to wire to existing light switch
Complete kit supplied
Includes cowl outlet
High performance Electronically Controlled fan
Suitable for a bathroom up to 4m x 5m
Fits wall cavity up to 300mm
Suits installation outside Zone 1
3-year warranty
PRODUCT SPECIFICATIONS
Powerful operation
Motor: 230-240 VAC 50Hz 16W
Motor insulation class: B1
Motor protection: thermal protection
Free air fan performance: 574m3/hr / 159.4l/sec
Decibel rating: 55.1 dB
Speed adjustable version available – FV168SA-EC
Powerful and effective through wall exhaust fan. Rapidly clears away mist and extracts moisture to the outside of your home.
PRODUCT DETAILS
Designed to wire to existing light switch
Includes low voltage (12V) transformer
Includes cowl outlet
High performance Electronically Controlled fan
Suitable for a bathroom up to 4m x 4m
Fits wall cavity up to 300mm
Suits installation outside Zone 1
3-year warranty
PRODUCT SPECIFICATIONS
Powerful operation
Motor: 12 VAC 50Hz 22W
Motor insulation class: B1
Motor protection: thermal protection
Free air fan performance: 490m3/hr / 136.1l/sec
Decibel rating: 49.4 dB
Powerful and effective through wall exhaust fan. Rapidly clears away mist and extracts moisture to the outside of your home.
PRODUCT DETAILS
Designed to wire to existing light switch
Complete kit supplied
Includes cowl outlet
High performance AC fan
Suitable for a bathroom up to 4m x 5m
Fits wall cavity up to 300mm
Suits installation outside Zone 1
3-year warranty
PRODUCT SPECIFICATIONS
Powerful operation
Motor: 230-240 VAC 50Hz 22W
Motor insulation class: B1
Motor protection: thermal protection
Free air fan performance: 376m3/hr / 104.4l/sec
Decibel rating: 46.2 dB

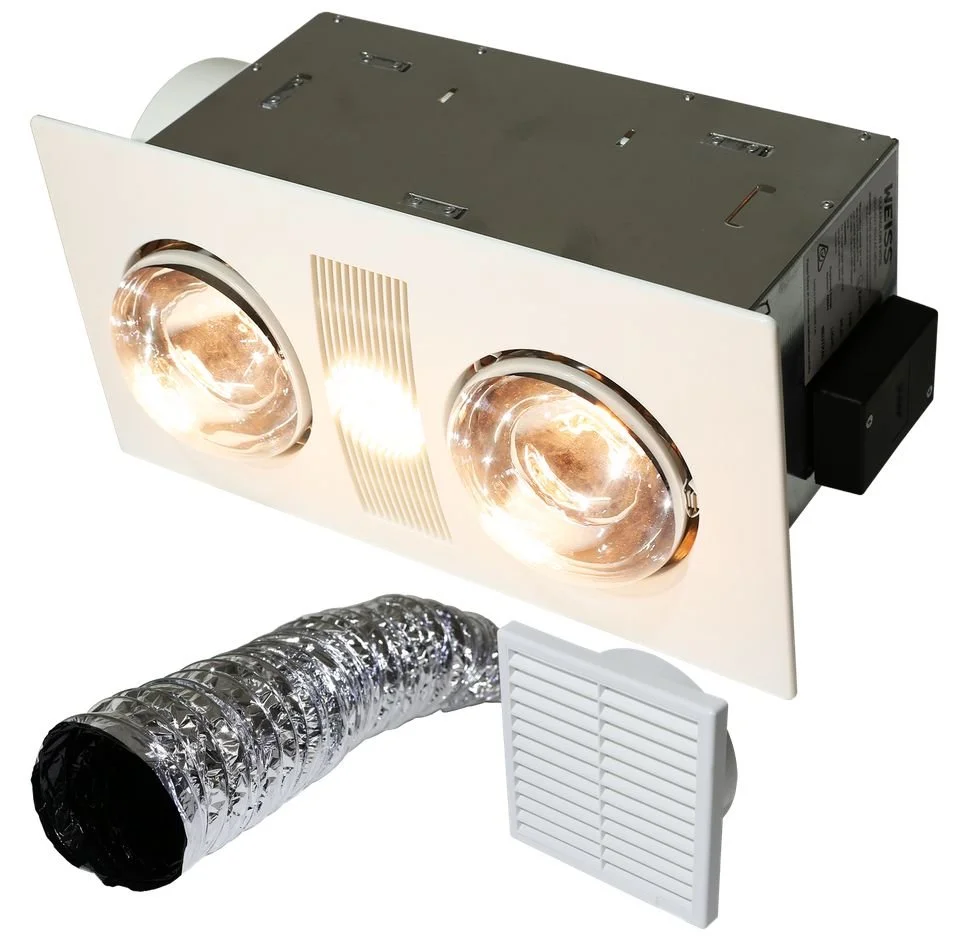

Powerful, yet quiet inline fan with ducting. Extracts mist that can cause mould and dampness, and expels it outside your home. Two 275 watt heat globes provide instant heat, and a 5 watt LED bulb lights your bathroom in summer or winter.
FEATURES & BENEFITS
Pressed galvanised steel body (for strength and safety)
Attractive, flush mounted fascia
Powerful, yet quiet fan motor due to celling cavity installation
3 metres of 150mm diameter ducting included
Automatic overheat protection
Dishwasher safe fascia
5-year warranty
PRODUCT SPECIFICATIONS
2 powerful 275 watt infra-red heat lamps
1× 5-watt LED light for standard lighting
3 metres of 150mm ducting
Soffit / wall outlet vent
Motor: 230-240 VAC 50Hz 0.4 Amp (twin blade inline fan)
Free Air Fan Performance: 405m/hr 112.5l/sec
Decibel rating: 46.0 dB
Powerful, exhaust fan extracts mist that can cause mould and dampness and expels it outside your home, two 275 watt heat globes provide instant heat and a 5 watt LED bulb lights your bathroom in summer or winter.
FEATURES & BENEFITS
Pressed galvanised steel body (for strength and safety)
Attractive, flush mounted fascia
Powerful fan motor due to blade pitch design
3 metres of 150mm diameter ducting included
Automatic overheat protection
Dishwasher safe fascia
5-year warranty
PRODUCT SPECIFICATIONS
2 powerful 275 watt infra-red heat lamps
1× 5-watt LED light for standard lighting
3 metres of 150mm ducting
Soffit / wall outlet vent
Motor: 150mm 230-240VAC 50Hz 0.3 amp exhaust fan
Free Air Fan Performance: 286m/hr
Decibel rating: 46.0 dB
The Weiss Open Flow family of products offers high performance electronically commutated (EC) in installations where positioning and accessibility for traditional installs may be challenging, including through wall units and fans for ceilings without large access areas, Open Flow ticks the box when your requirements are ‘not quite standard’.
FEATURES & BENEFITS
Designed to wire to existing light switch
High performance Electronically Controlled fan
Suitable for a bathroom up to 4m x 5m
Suits installation outside Zone 1
3-year warranty
PRODUCT SPECIFICATIONS
Powerful operation
Motor: 230-240 VAC 50Hz 16W
Motor insulation class: B1
Motor protection: thermal protection
Free air fan performance: 574m3/hr / 159.4l/sec
Decibel rating: 55.1 dB
Speed adjustable version available – FV167SA-EC
200mm replacement exhaust fan.
Product Details
Stylish Design
Easy to install
Powerful fan motor due to blade pitch design
Product designed to run with up to 3 metres of ducting fitted
3-year warranty
Product Specifications
Motor: 230-240 VAC 50Hz 0.4 Amp
Motor insulation class: B1
Motor protection: thermal protection
Free air fan performance: 326m3/hr / 90.61/sec
Decibel rating: 47.0 dB
Fully Automatic Humidity Detecting Bathroom Fan
Starts up automatically, speeds up or slows down, depending on humidity, constant trickle extraction maintains superior air quality.
One model fits all. Intelli-Flow is programmed to cope with most bathroom installations, where both extra-low and extra-high airflows are required.
FEATURES & BENEFITS
Easy to install
Built-in humidity sensor with on-demand extraction
Continuous trickle extraction
Allows moisture to be removed to the outside of your home
150mm EC fan motor
3 metres of 150mm ducting supplied
Round inlet fascia and soffit/wall outlet grill included
Fitted with flex and plug
3-year warranty
PRODUCT SPECIFICATIONS
Power Supply: 230VAC
Power Consumption: max. 0.019~0.45A
Supply Line Fusing Max: 10A
Connection terminals screw clamp terminals
For solid wires 2x 1.5mm2
Max product wattage 73 watts
Free air fan performance 63~650m3/hr
